Description

The PERAFLEX Compressed Air (Bull) Hose 40 Bar is a high pressure steel wire reinforced rubber hose engineered for compressed air with light traces and oil mist in civil engineering, road constructions, quarries, and mines, as well as general industrial usage. Rated at 40 Bar (580 PSI) working pressure with single steel wire braid reinforcement and a yellow synthetic rubber cover, this is the heaviest duty air hose in the PERAFLEX range for the most demanding compressed air applications worldwide.

Flytech Engineering stocks PERAFLEX Compressed Air Bull Hose 40 Bar in Klang, Selangor for fast delivery to Klang, Shah Alam, Selangor, Kuala Lumpur, Johor Bahru, Penang, Ipoh, Kerteh, Kemaman, Bintulu, Miri, Sarawak, Sabah, Malaysia and worldwide.

Key Features
• 40 Bar (580 PSI) working pressure — highest pressure rating in the PERAFLEX air hose range
• Single steel wire braid reinforcement — for maximum pressure stability in high pressure air applications
• Air resistant tube — black synthetic rubber compound resistant to compressed air
• Yellow synthetic rubber cover — high visibility, abrasion and weather resistant for outdoor industrial use
• Wide temperature range — -40°C to +90°C for all-weather outdoor operations
• Wide size range — 1/2″ to 4″ bore for all high pressure air supply requirements
• PERAFLEX branded — yellow colour with bull hose designation for easy identification

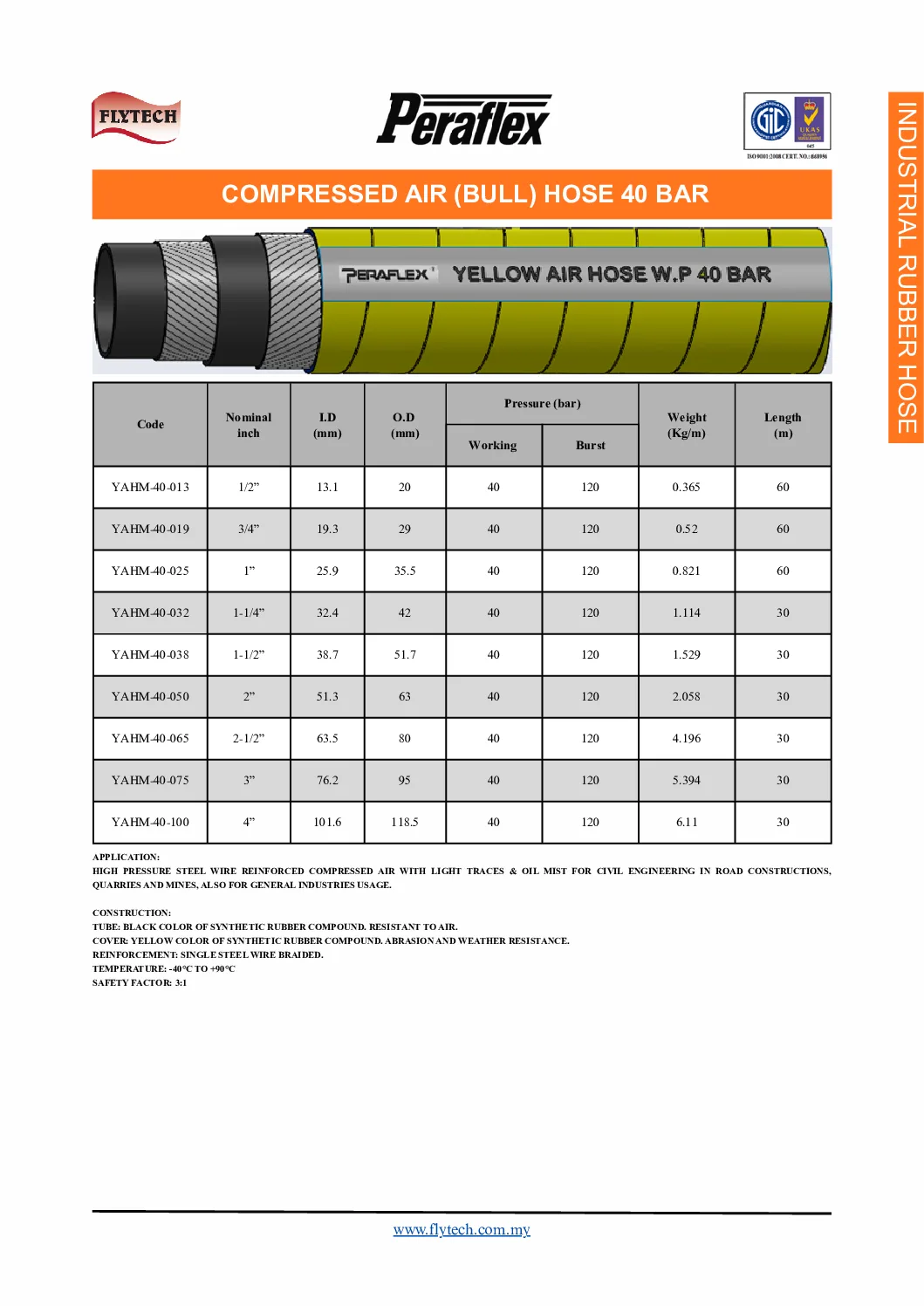

Specifications
• Working Pressure: 40 Bar (580 PSI)
• Burst Pressure: 120 Bar
• Safety Factor: 3:1
• Tube: Black synthetic rubber compound — resistant to air
• Cover: Yellow synthetic rubber compound — abrasion and weather resistant
• Reinforcement: Single steel wire braided
• Temperature Range: -40°C to +90°C

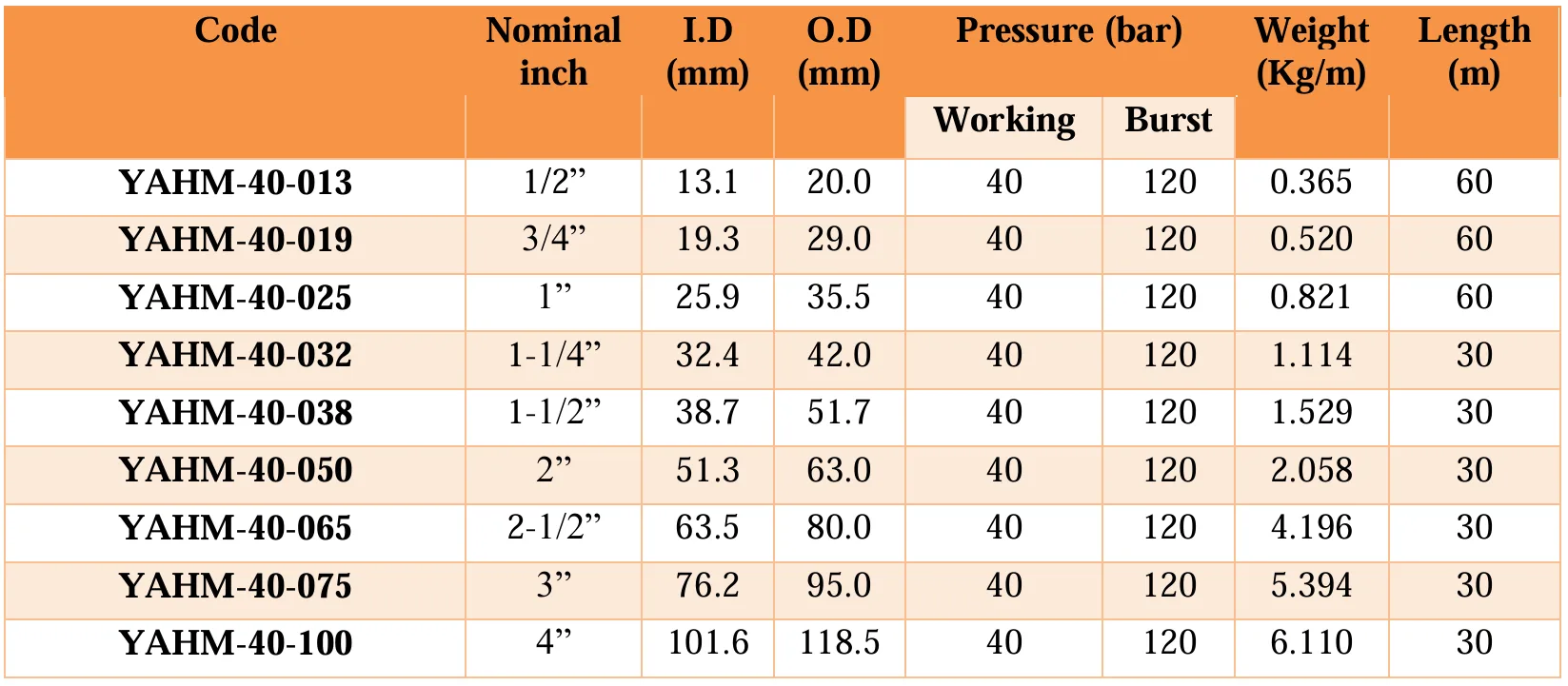

• Available Sizes: 1/2″ (13.1mm) to 4″ (101.6mm)
• Standard Length: 60m (1/2″–1″), 30m (1-1/4″–4″)
• Product Codes: YAHM-40-013 to YAHM-40-100

Applications
• Civil engineering and road construction — high pressure compressed air with light traces and oil mist
• Quarry and mining operations — heavy duty compressed air supply to drilling and blasting equipment
• General industries — high pressure compressed air transfer in demanding industrial environments
• Shipyard and offshore — high pressure pneumatic tool supply lines
• Construction plant — primary compressed air supply lines for heavy construction equipment

Available Configurations
Available in bore sizes from 1/2″ to 4″ in standard 60m and 30m lengths. Supplied with BSP, Camlock, or custom end fittings. Ready stock in Malaysia. ISO 9001:2015 certified.
