Description

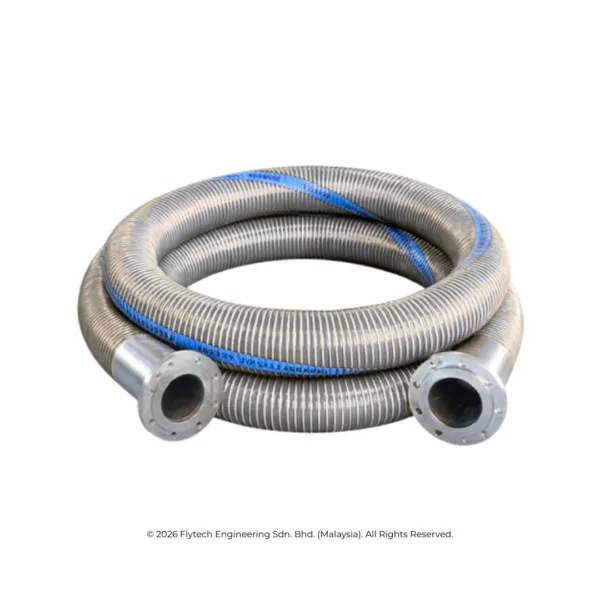

COMPOMASTER LNG Composite Hose
The CompoMaster LNG composite hose is a specialised cryogenic flexible transfer hose engineered for the safe loading, unloading, and bunkering of liquefied natural gas (LNG) under extreme low-temperature conditions. Constructed from polyamide and polyester materials reinforced with 316L stainless steel inner and outer wire helixes, it delivers exceptional cryogenic resistance, mechanical strength, and flexibility at temperatures as low as -196°C.
As LNG bunkering infrastructure expands across Southeast Asia, the CompoMaster LNG hose provides terminal operators, shipping companies, and industrial facilities with a certified, reliable solution for demanding cryogenic transfer operations on land and at sea.

Key Features
• Specifically engineered for LNG cryogenic transfer
• Operating temperature range: -196°C to +45°C
• Polyamide and polyester construction for low-temperature flexibility
• Full 316L stainless steel inner and outer wire reinforcement
• Weatherproof PVC-coated polyester outer cover
• Suitable for truck-to-ship, ship-to-ship, rail wagon, and marine terminal operations
• Certified to EN 13765 and IMO IBC Code
• 5:1 safety factor
• Hydro-testing and certification available on request

Applications
• LNG ship-to-shore loading and unloading
• LNG truck-to-ship bunkering
• Ship-to-ship LNG transfer
• Rail wagon LNG operations
• Marine LNG terminal transfer
• Onshore LNG storage and distribution

Available End Fittings
Camlock, BSP, flange, threaded, and custom connections to suit your LNG terminal or vessel connection requirements.

Why Choose Flytech?
Flytech Engineering has supplied CompoMaster composite hoses to industrial operators across Southeast Asia since 1999. Every LNG hose assembly is fabricated, pressure-tested, and certified at our ISO 9001 facility in Klang. Our technical team can assist with assembly specification for your specific LNG bunkering or transfer application. Contact us for shipping options to your country.

Frequently Asked Questions

What temperature range can the LNG-Type handle?
The CompoMaster LNG composite hose is rated for cryogenic service from -196°C to +45°C, making it suitable for all standard LNG transfer operations.

How is the LNG-Type different from standard composite hoses?
Standard composite hoses use polypropylene construction rated to -20°C. The LNG-Type uses polyamide and polyester materials specifically selected for cryogenic service, maintaining flexibility and integrity at temperatures down to -196°C.

Is the LNG-Type certified for marine use?
Yes. The CompoMaster LNG hose meets EN 13765 and IMO IBC Code requirements for marine LNG transfer operations.

Can I get a custom length and end fittings?
Yes. Flytech fabricates LNG hose assemblies to your specified length with a full range of end connections suited to LNG terminal and vessel requirements.

Do you ship regionally?
Yes. Flytech supplies CompoMaster LNG composite hoses across Southeast Asia. Contact us for shipping options to your country.
