Description

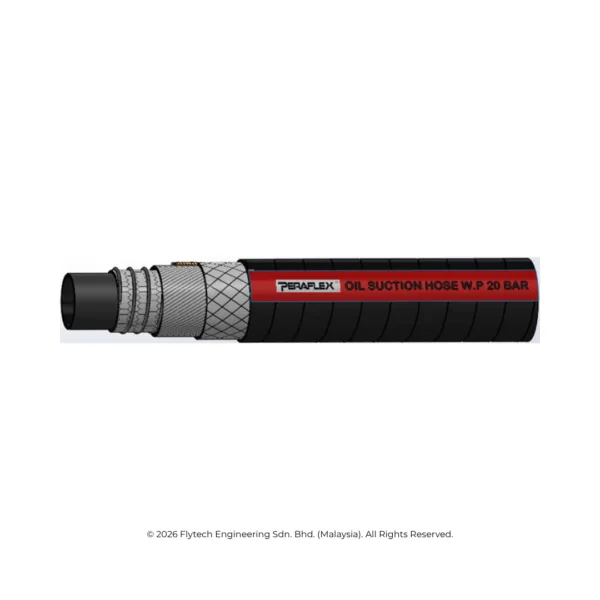

The PERAFLEX Oil Suction Hose 20 Bar is a heavy-duty hardwall rubber hose engineered for the suction and delivery of petroleum products, fuels, crude oil, and lubricants with aromatic content up to 50%. Rated at 20 Bar (300 PSI) working pressure, this hose is the trusted choice for tank truck operators, bunkering terminals, refineries, and petroleum handling operations across Malaysia and worldwide.

Flytech Engineering stocks PERAFLEX Oil Suction Hose 20 Bar in Klang, Selangor for fast delivery to Klang, Shah Alam, Selangor, Kuala Lumpur, Johor Bahru, Penang, Ipoh, Kerteh, Kemaman, Terengganu, Bintulu, Miri, Sarawak, Sabah, Malaysia and worldwide.

Key Features
• 20 Bar (300 PSI) working pressure — heavy-duty hardwall construction for demanding petroleum suction and delivery
• Aromatic content up to 50% — NBR blend compound tube suitable for a wide range of petroleum products
• Anti-static copper wire — embedded in reinforcement, dissipates static charge for safe petroleum transfer in hazardous areas
• Steel helix wire reinforcement — prevents hose collapse under full vacuum suction conditions
• Multiple layers of high tensile synthetic cord — for maximum pressure stability and durability
• Oil, abrasion and weather resistant cover — NBR blend compound resists oil mist, ozone, and harsh environments
• Wide size range — 1/2″ to 16″ bore to suit all petroleum transfer requirements
• PERAFLEX branded — Red/Black stripe for easy field identification

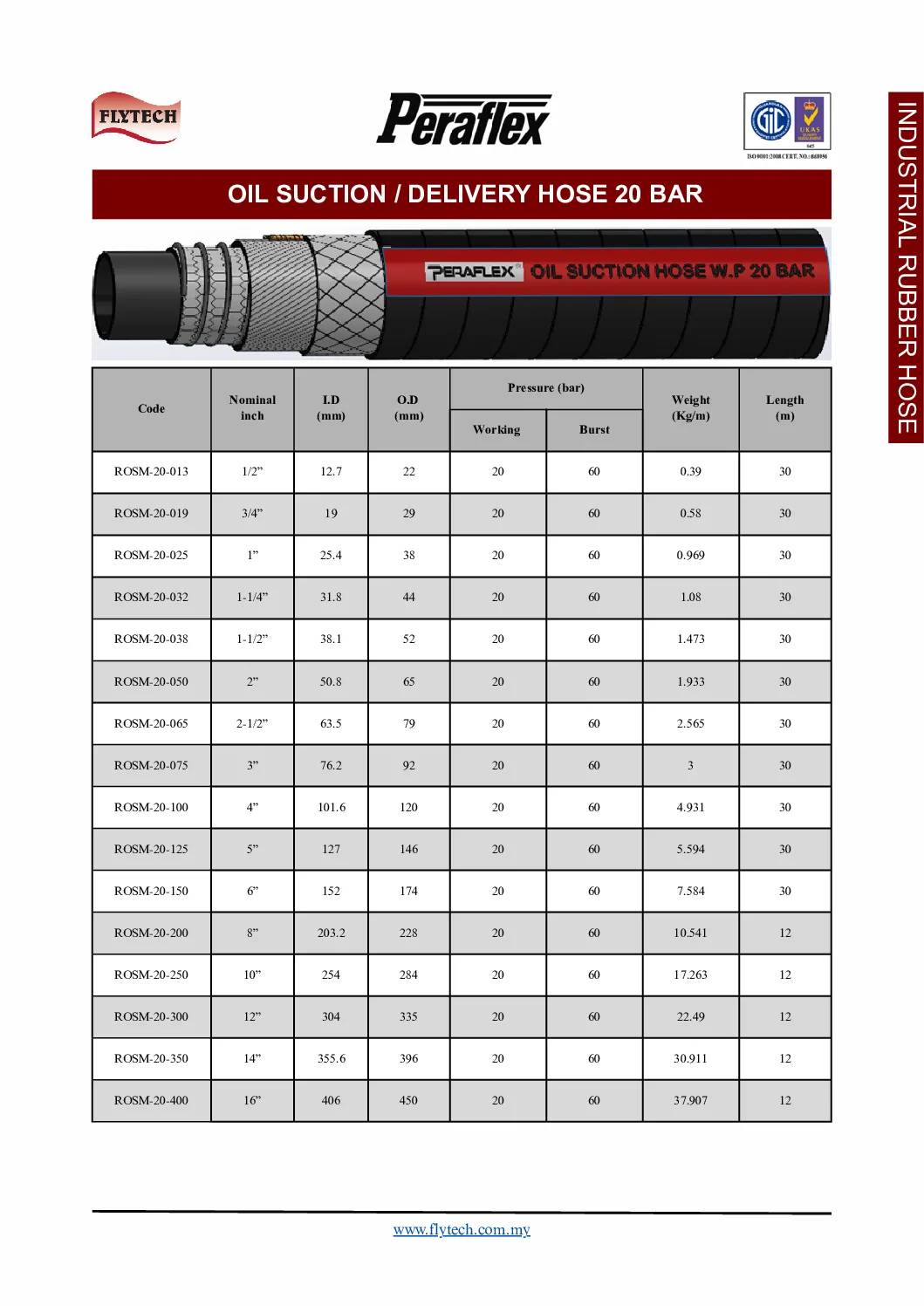

Specifications
• Working Pressure: 20 Bar (300 PSI)
• Burst Pressure: 60 Bar
• Safety Factor: 3:1
• Tube: Black NBR blend compound — oil resistant
• Cover: Black NBR blend compound — oil, abrasion and weather resistant
• Reinforcement: Multiple layers of high tensile synthetic cord + steel helix wire + anti-static copper wire
• Temperature Range: -20°C to +90°C
• Aromatic Content: Up to 50%
• Available Sizes: 1/2″ (12.7mm) to 16″ (406mm)
• Standard Length: 30m (1/2″–6″), 12m (8″–16″)
• Product Codes: ROSM-20-013 to ROSM-20-400

Applications
• Tank truck loading and unloading — petroleum product transfer at fuel terminals and depots in Malaysia
• Marine bunkering — ship-to-shore oil and fuel delivery at Port Klang, Johor Port, Bintulu, and offshore platforms
• Refinery service — crude oil and petroleum product suction and discharge at PETRONAS and EPC contractor facilities
• Industrial oil transfer — factory and plant lubrication oil supply lines
• Oil and gas onshore — petroleum product handling at production facilities in Kerteh and Miri

Available Configurations
Available in bore sizes from 1/2″ to 16″ in standard lengths. Supplied with Camlock (Type A–F), flanged (ANSI/BS/JIS), or custom end fittings. All assemblies hydrostatic pressure tested. Official test certificates on request. Ready stock in Klang, Malaysia. ISO 9001:2015 certified.
