PVC Reinforced Braided Hose (Hi-Net)

PVC Reinforced Braided Hose (Hi-Net)

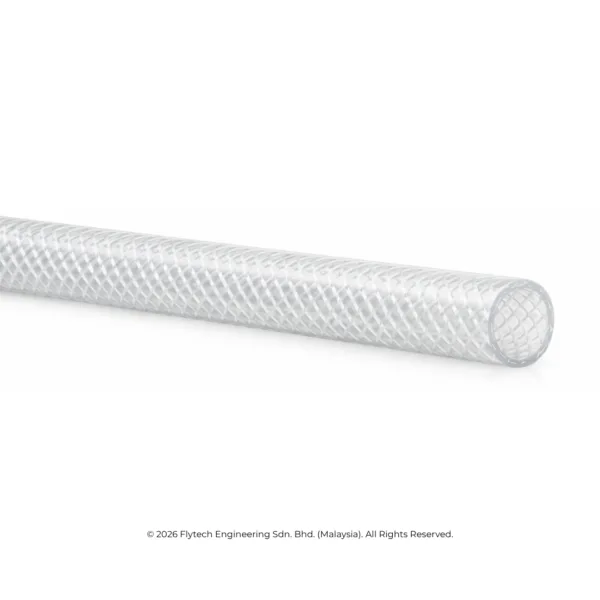

The TOYOGOMA Hi-Net PVC Reinforced Braided Hose is a clear PVC hose with high-strength polyester braided reinforcement — providing superior pressure resistance and fluid visibility for water, air, and light chemical transfer applications. The transparent PVC construction allows easy visual monitoring of fluid flow and condition — enabling quick identification of blockages, discolouration, or contamination. Lightweight, flexible, and kink-resistant. Temperature rated -5°C to +60°C. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.

Key Features & Specifications
• Inner tube: Clear PVC — transparent for fluid visibility
• Reinforcement: High-strength polyester braided yarn
• Cover: Clear PVC
• Temperature range: -5°C to +60°C
• Working pressure: Up to 10 Bar (145 PSI) depending on size
• Sizes available: 1/4″ to 2″ (6mm to 50mm bore)
• RoHS2 compliant
• Kink resistant — maintains flow under bending
• Lightweight and flexible — easy installation
• Clear transparent — visual fluid monitoring

Applications
• Water supply in laboratories and clean rooms
• Food and beverage processing — water transfer (non-food grade)
• Light chemical transfer — acids and alkalis compatible with PVC
• Compressed air supply in workshop and light industrial use
• Aquaculture and fish farming water supply
• Agricultural chemical spraying connections
• Medical and pharmaceutical equipment water connections

Available Configurations
• Loose hose — cut to required length
• Assembled with BSP threaded fittings
• Assembled with Camlock couplings
• Barbed hose tail fittings available
• Custom lengths available
Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• TOYOGOMA authorised distributor in Malaysia
• Over 27 years supplying industrial hoses in Malaysia
• Technical support — hose selection and compatibility advice
• Custom assembly — cut to length with end fittings

Frequently Asked Questions
Q: What is Hi-Net PVC reinforced braided hose used for?
A: TOYOGOMA Hi-Net PVC Reinforced Braided Hose is used for water, compressed air, and light chemical transfer in laboratory, workshop, food processing, aquaculture, and agricultural applications. The clear transparent PVC allows visual monitoring of fluid flow and condition inside the hose.

Q: Why is clear PVC hose better than opaque hose for some applications?
A: Clear PVC hose allows visual monitoring of the fluid flowing inside — enabling operators to quickly identify blockages, discolouration, contamination, or air bubbles without disconnecting the hose. This is particularly valuable in laboratory, food processing, and pharmaceutical applications where fluid condition monitoring is important.

Q: What is the working pressure of Hi-Net PVC braided hose?
A: TOYOGOMA Hi-Net PVC Reinforced Braided Hose has a working pressure of up to 10 Bar (145 PSI) depending on bore size — suitable for standard water, air, and light chemical transfer applications.

Q: What chemicals is PVC reinforced braided hose compatible with?
A: Compatible with water, compressed air, dilute acids, dilute alkalis, and many mild chemicals compatible with PVC. Not suitable for petroleum products, concentrated solvents, concentrated acids, or chemicals that attack PVC. Consult Flytech Engineering for specific chemical compatibility.

Q: What sizes are available for Hi-Net PVC braided hose?
A: Available in bore sizes from 1/4″ to 2″ (6mm to 50mm) with ready stock at Flytech Engineering in Klang. Custom cut lengths and end fittings available.
