Toyox Silicone Hose (Toyosilicone)
The Toyox Toyosilicone Hose is a premium silicone rubber hose registered in the FDA Drug Master File (DMF Type II) — meeting the highest standards for pharmaceutical manufacturing, food processing, and biotechnology fluid transfer. The Toyosilicone features exceptional flexibility, transparency, and biocompatibility — with a maximum temperature of 130°C for short-term sterilisation by steam. Suitable for CIP (clean-in-place) cleaning with dilute caustic soda (2-3% NaOH) and standard food and pharma cleaning agents. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.
Key Features & Specifications
• Brand: TOYOX — made in Japan
• Material: Platinum-cured silicone rubber
• FDA compliant — FDA 21 CFR food contact approved
• DMF registered Type II — pharmaceutical grade (DMF No. 25486)
• Temperature: -60°C to +100°C continuous; up to 130°C short term (sterilisation)
• Working pressure: Up to 0.2 MPa (2 Bar) at standard temperature
• Transparent — visual fluid monitoring
• Excellent flexibility at all temperatures

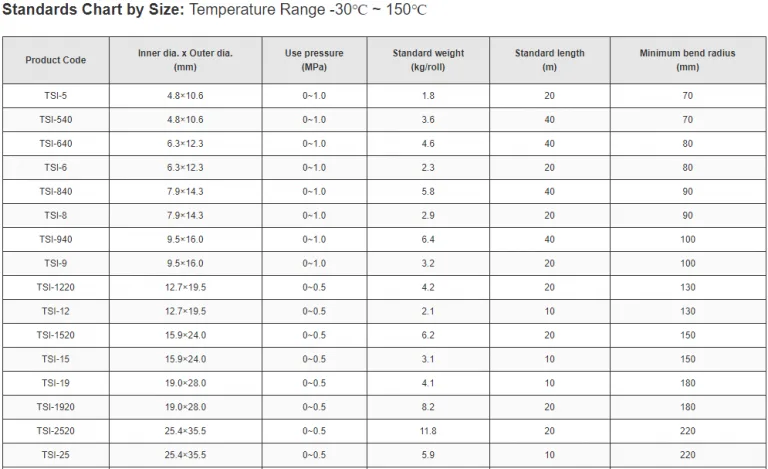

• Sizes: Inner diameter range available (contact for sizes)
• CIP compatible — dilute caustic soda 2-3% NaOH acceptable

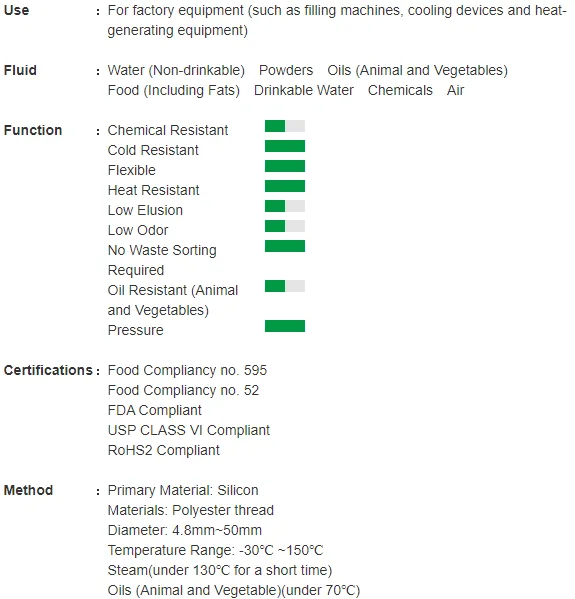

Applications
• Pharmaceutical manufacturing — API, reagent and process fluid transfer
• Biotechnology — cell culture media and buffer transfer
• Food and beverage — FDA compliant liquid transfer
• Dairy — milk, cream and product transfer
• Brewery — wort, beer and CIP connections
• Medical device manufacturing — sterile fluid transfer
• High-purity water and WFI (Water for Injection) transfer
Available Configurations
• Available in standard lengths
• Assembled with sanitary tri-clamp fittings (SS316)
• Assembled with BSP or NPT threaded fittings
• Custom lengths available
Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• TOYOX authorised distributor in Malaysia
• Over 27 years supplying industrial hoses in Malaysia
• Technical support — hose selection and compatibility advice
• Custom assembly — cut to length with end fittings
Frequently Asked Questions
Q: Is Toyox Toyosilicone hose FDA approved?
A: Yes. Toyox Toyosilicone Hose is FDA compliant under 21 CFR and registered in the FDA Drug Master File (DMF Type II, No. 25486) — meeting the highest standards for pharmaceutical and food contact applications. The Toyosilicone Hose Series products are registered as of January 2012.
Q: What temperature does Toyosilicone handle?
A: Toyosilicone operates continuously from -60°C to +100°C. For sterilisation purposes, it can handle up to 130°C short term — but continuous use at high temperature above 100°C should be avoided to prevent degradation of reinforcement threads. Steam sterilisation should be limited to short cycles.
Q: Can Toyosilicone be used with caustic soda for CIP cleaning?
A: Yes — dilute solutions of sodium hydroxide (caustic soda) at 2-3% concentration are acceptable for CIP (clean-in-place) cleaning of Toyosilicone Hose. Concentrated caustic soda should not be used as it may cause degradation.
Q: Is Toyosilicone hose suitable for pharmaceutical use?
A: Yes. Toyox Toyosilicone is registered in FDA Drug Master File (DMF Type II No. 25486) — widely used in pharmaceutical manufacturing, biotechnology, and medical device production for sterile fluid transfer, CIP connections, and WFI (Water for Injection) lines.
Q: Where can I buy Toyox Toyosilicone hose in Malaysia?
A: Toyox Toyosilicone Hose is available from Flytech Engineering Sdn Bhd in Klang, Selangor. Contact us for pricing, sizes, and technical specifications.
