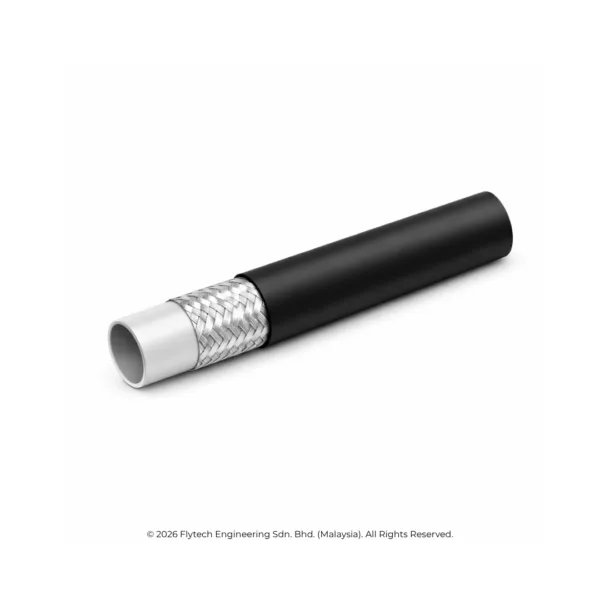

Thermoplastic R7 Hydraulic Hose (1 PLY)

Thermoplastic R7 Hydraulic Hose (1 PLY)
The Thermoplastic R7 Hydraulic Hose (1 PLY) is a high-performance medium-pressure hydraulic hose designed for precision fluid power systems. Featuring a high-tensile single-layer synthetic fiber braid, this hose offers a lightweight alternative to wire-braided rubber hoses. Its thermoplastic core ensures a smooth internal bore, minimizing pressure drops and providing excellent chemical compatibility with hydraulic fluids, oils, and gases. Compliant with SAE 100 R7 standard. Non-conductive versions available for electrical utility and aerial lift applications. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.

Key Features & Specifications
• Standard: SAE 100 R7 compliant
• Construction: Single (1 PLY) high-tensile synthetic fiber braid
• Inner tube: Smooth thermoplastic — oil and chemical resistant
• Cover: Abrasion resistant thermoplastic — UV stable
• Temperature range: -40°C to +100°C
• Pressure: Medium pressure hydraulic (size dependent)
• Bore sizes: 3mm to 25mm (1/8″ to 1″)
• Non-conductive options — for aerial lift and electrical utility
• Lightweight — 30-50% lighter than equivalent rubber hose
• Smooth bore — low pressure drop and clean flow

Applications
• Medium pressure hydraulic systems — mobile and industrial
• Pneumatic tool and equipment connections
• Aerial lift and bucket truck hydraulic systems — non-conductive grade
• Electrical utility maintenance equipment
• Agricultural hydraulic equipment
• Paint spray gun connections
• Robotics and automation fluid power systems

Available Configurations
• With BSP or NPT end fittings
• With JIC 37° end fittings
• Cut to required length
• Non-conductive grade — specify on order
• Custom assembly available

Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• Over 27 years supplying industrial hoses in Malaysia
• Custom assembly — cut to length with end fittings
• Technical support — hose selection and pressure rating advice
• Export ready — Singapore, Indonesia, Thailand, Middle East

Frequently Asked Questions
Q: What is SAE 100 R7 thermoplastic hose used for?
A: SAE 100 R7 thermoplastic hose with 1 PLY synthetic fiber braid is used for medium pressure hydraulic and pneumatic systems where lightweight, kink resistance, and non-conductive options are required. Common applications include aerial lifts, electrical utility equipment, agricultural machinery, and robotics.

Q: Why is R7 thermoplastic hose better for aerial lift applications?
A: R7 thermoplastic hose with synthetic fiber braid (no steel wire) is electrically non-conductive — essential for aerial lift, bucket truck, and electrical utility maintenance applications where the hose may come into contact with energised electrical conductors. Steel wire braided hose conducts electricity and is a safety hazard in these applications.

Q: What pressure does R7 1 PLY thermoplastic hose handle?
A: Working pressure varies by bore size — typically 50-200 Bar for medium pressure hydraulic applications. Contact Flytech Engineering for specific pressure ratings.

Q: What sizes are available for R7 thermoplastic hose?
A: Available in bore sizes from 3mm to 25mm (1/8″ to 1″) with ready stock at Flytech Engineering in Klang.

Q: Where can I buy SAE 100 R7 thermoplastic hose in Malaysia?
A: Available from Flytech Engineering Sdn Bhd in Klang, Selangor with ready stock. Non-conductive grade available on request. Contact us for pricing and assembly.
