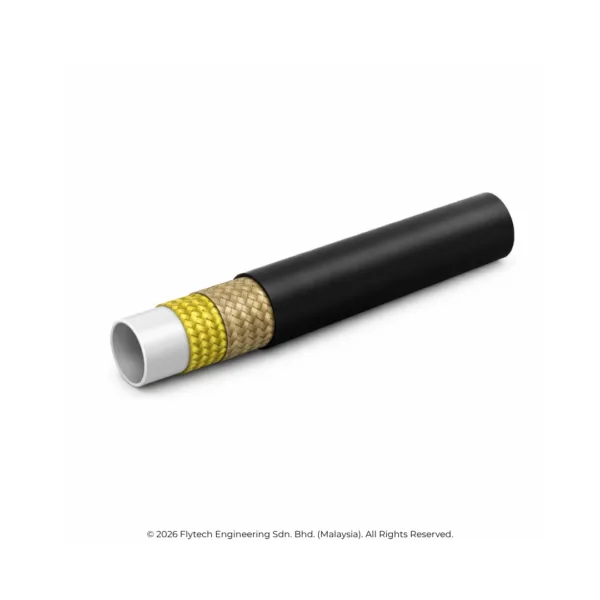

Thermoplastic R8 Hydraulic Hose (2 PLY)

Thermoplastic R8 Hydraulic Hose (2 PLY)
The Thermoplastic R8 Hydraulic Hose (2 PLY) is a high-strength high-pressure hydraulic hose engineered for demanding fluid power applications. Featuring a dual-layer (2 PLY) high-tensile synthetic fiber reinforcement, it provides significantly higher pressure ratings than the R7 series while remaining lightweight and flexible. Its robust construction ensures long-term reliability for hydraulic systems requiring enhanced durability and minimal volumetric expansion. Compliant with SAE 100 R8 standard. Non-conductive construction makes it ideal for electrical hazard environments. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.

Key Features & Specifications
• Standard: SAE 100 R8 compliant
• Construction: Dual (2 PLY) high-tensile synthetic fiber braid
• Inner tube: Smooth thermoplastic — oil resistant
• Cover: Abrasion resistant thermoplastic
• Temperature range: -40°C to +100°C
• Pressure: High pressure — significantly above R7 1 PLY
• Bore sizes: 3mm to 19mm (1/8″ to 3/4″)
• Non-conductive — ideal for electrical hazard environments
• Heavy-duty 2-layer fiber reinforcement
• Minimal volumetric expansion — precise hydraulic response

Applications
• High pressure hydraulic systems requiring more pressure than R7
• Mobile equipment hydraulics — construction, mining, agriculture
• Industrial press and forming hydraulic systems
• Aerial lift and bucket truck high pressure circuits — non-conductive
• High pressure pneumatic systems
• Water jetting and pressure washing equipment
• Robotics requiring high pressure and electrical safety

Available Configurations
• With BSP or NPT end fittings
• With JIC 37° end fittings
• Non-conductive grade — specify on order
• Custom assembly available

Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• Over 27 years supplying industrial hoses in Malaysia
• Custom assembly — cut to length with end fittings
• Technical support — hose selection and pressure rating advice
• Export ready — Singapore, Indonesia, Thailand, Middle East

Frequently Asked Questions
Q: What is the difference between R7 and R8 thermoplastic hose?
A: R8 thermoplastic hose uses dual (2 PLY) synthetic fiber braid versus R7 single (1 PLY) braid — providing significantly higher pressure ratings while maintaining the lightweight and non-conductive properties of fiber-reinforced thermoplastic hose. Choose R8 when system pressure exceeds R7 capability.

Q: Why use 2 PLY thermoplastic instead of single steel braid?
A: 2 PLY synthetic fiber braid provides high pressure capability while remaining electrically non-conductive — making R8 2 PLY the preferred choice for high pressure applications near electrical hazards (aerial lifts, electrical utility equipment) where steel wire braid would be a safety risk.

Q: What pressure does R8 2 PLY thermoplastic hose handle?
A: Higher pressure than R7 1 PLY — typically suitable for hydraulic systems requiring high pressure with non-conductive safety. Contact Flytech Engineering for specific pressure ratings by bore size.

Q: Is R8 2 PLY thermoplastic hose non-conductive?
A: Yes. The 2 PLY synthetic fiber braid construction (no steel wire) is electrically non-conductive — making it suitable for aerial lift, bucket truck, and electrical utility hydraulic systems where electrical safety is critical.

Q: Where can I buy R8 2 PLY thermoplastic hose in Malaysia?
A: Available from Flytech Engineering Sdn Bhd in Klang, Selangor with ready stock. Contact us for sizes, pressure ratings, and assembly options.
