Description

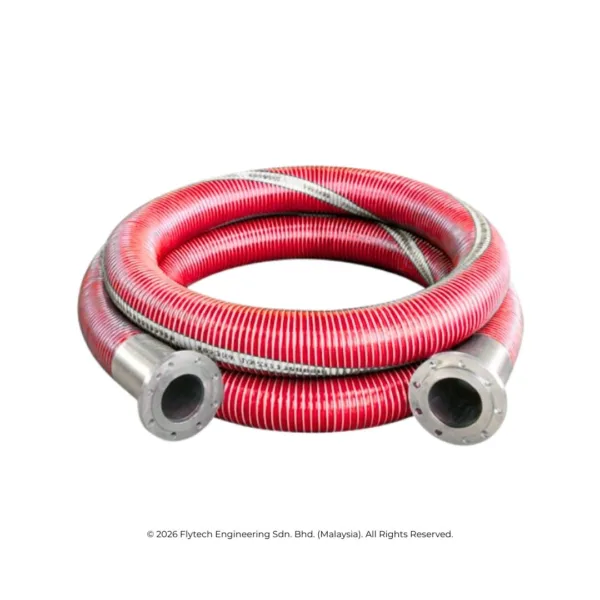

COMPOMASTER STG Composite Hose
The CompoMaster STG composite hose is a PTFE-lined flexible transfer hose engineered for the safe handling of highly aggressive chemicals where standard polypropylene construction is insufficient. The PTFE inner lining provides exceptional chemical resistance across a wide range of acids, alkalis, solvents, and corrosive fluids, while the stainless steel inner wire and galvanised outer wire deliver structural strength and vacuum resistance.

Key Features
• PTFE inner lining for maximum chemical resistance
• 316L stainless steel inner wire for corrosion protection
• Galvanised steel outer wire for structural strength
• Weatherproof, UV-resistant PVC-coated outer cover
• Lightweight and flexible
• Suction and pressure rated
• Sizes 1″ to 8″ available
• Temperature range: -30°C to +100°C
• Certified to EN 13765 and IMO IBC Code
• 5:1 safety factor
• Hydro-testing and certification available on request

Applications
• Highly aggressive acid and alkali chemical transfer
• Petrochemical and pharmaceutical fluid handling
• Solvent transfer in chemical plants
• Dockside and ship-to-shore aggressive chemical transfer
• In-plant handling of corrosive process fluids

Available End Fittings
Camlock, BSP, flange, threaded, and custom connections. Rope lagging and static grounding wire available on request.

Why Choose Flytech?
Flytech Engineering has supplied CompoMaster composite hoses to industrial operators across Southeast Asia since 1999. Every assembly is fabricated, pressure-tested, and certified at our ISO 9001 facility in Klang before delivery. Our technical team can advise on chemical compatibility and liner selection for your specific application.

Frequently Asked Questions

When should I choose STG-Type over SS-Type?
When your fluid is incompatible with polypropylene, the PTFE-lined STG-Type provides the next level of chemical resistance. Contact Flytech’s technical team with your fluid details for a compatibility check.

What is the difference between STG-Type and STS-Type?
The STG-Type has PTFE lining with SS inner and galvanised outer wire. The STS-Type has PTFE lining with full 316L stainless steel wire throughout — the highest chemical and corrosion resistance in the CompoMaster range.

Do you ship regionally?
Yes. Flytech supplies CompoMaster composite hoses across Southeast Asia. Contact us for shipping options to your country.
