PVC Spring Hose

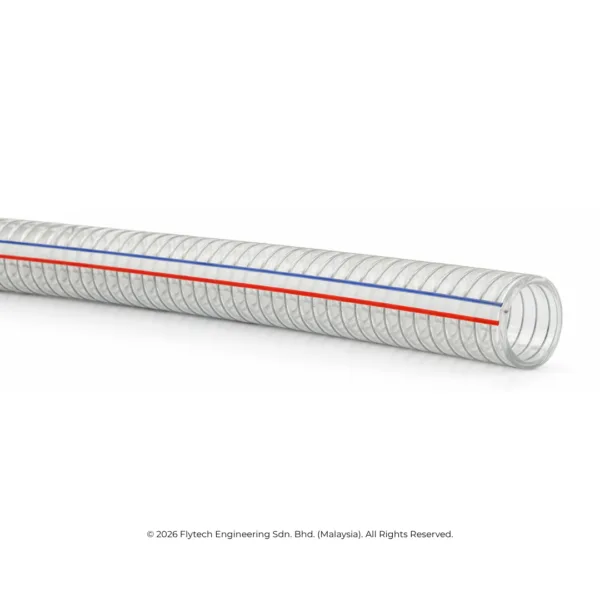

The TOYOGOMA PVC Spring Hose is a clear PVC suction and discharge hose reinforced with a steel wire helix spiral — providing full vacuum resistance and anti-collapse properties for demanding suction applications. The steel wire spring helix maintains the hose bore under full vacuum — preventing collapse during pump suction operations. Transparent PVC construction allows visual monitoring of fluid flow. Widely used in agriculture, construction, manufacturing, and industrial sectors for water, chemical, and slurry suction and discharge. Temperature rated -5°C to +60°C. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.

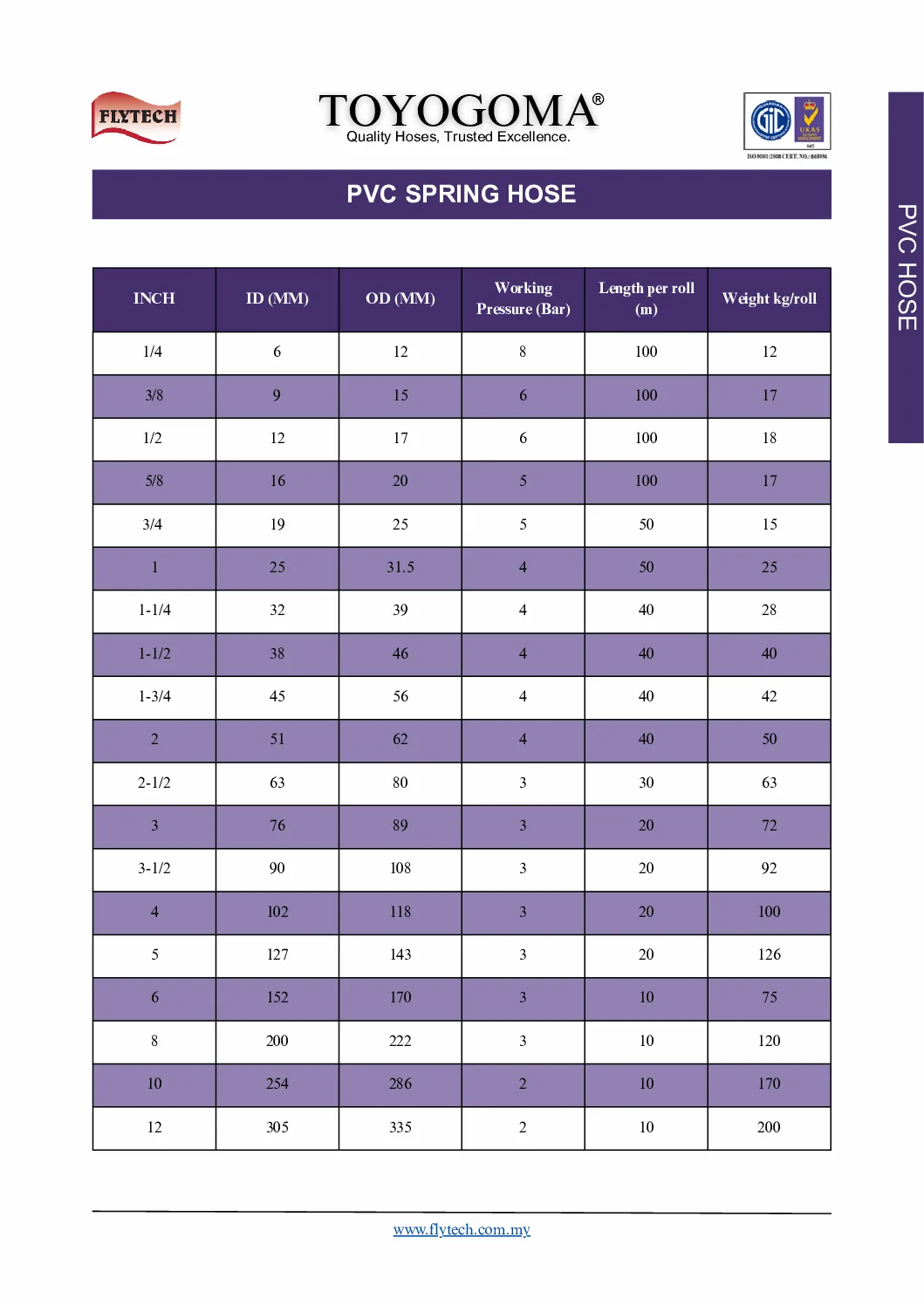

Key Features & Specifications
• Inner tube: Clear transparent PVC
• Reinforcement: Hard steel wire helix spiral — anti-collapse, full vacuum rated
• Cover: Clear transparent PVC
• Temperature range: -5°C to +60°C
• Vacuum: Full vacuum rated — anti-collapse under suction
• Working pressure: -1 Bar vacuum to 6-10 Bar positive (size dependent)
• Sizes available: 1/2″ to 12″ (12mm to 300mm bore)
• Transparent — visual fluid monitoring
• Kink resistant — steel wire helix maintains bore shape
• Lightweight compared to rubber suction hose
Applications
• Agriculture — water and liquid fertiliser suction and irrigation
• Construction dewatering — pump suction lines
• Chemical transfer — acids, alkalis, and mild solvents compatible with PVC
• Food processing — non-food-grade liquid transfer
• Manufacturing — coolant and water suction
• Aquaculture — water intake and discharge
• Mining — water and slurry suction
• Palm oil mill — water and effluent transfer
Available Configurations
• Loose hose — 30m or 50m coils
• Custom cut lengths available
• Assembled with Camlock couplings (aluminium or SS)
• Assembled with BSP threaded fittings
• Flanged ends available
Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• TOYOGOMA authorised distributor in Malaysia
• Over 27 years supplying industrial hoses in Malaysia
• Technical support — hose selection and compatibility advice
• Custom assembly — cut to length with end fittings
Frequently Asked Questions
Q: What is PVC spring hose used for?
A: TOYOGOMA PVC Spring Hose is used for suction and discharge of water, chemicals, slurry, and agricultural liquids. The steel wire helix prevents collapse under vacuum — making it ideal for pump suction lines in agriculture, construction dewatering, industrial water transfer, and chemical handling applications.
Q: What is the difference between PVC spring hose and PVC layflat hose?
A: PVC spring hose has a steel wire helix reinforcement — providing full vacuum resistance and anti-collapse properties for pump suction applications. PVC layflat hose uses polyester yarn reinforcement — suitable for discharge only (cannot handle vacuum). Choose spring hose for suction; choose layflat for discharge.
Q: What vacuum rating does TOYOGOMA PVC spring hose have?
A: TOYOGOMA PVC Spring Hose is full vacuum rated — the steel wire helix maintains the bore shape under full negative pressure (-1 Bar / -760 mmHg). Suitable for centrifugal pump suction lines, vacuum transfer, and suction applications where hose collapse would restrict flow.
Q: What sizes are available for PVC spring hose?
A: Available in bore sizes from 1/2″ to 12″ (12mm to 300mm) with ready stock for standard sizes at Flytech Engineering in Klang. Custom cut lengths available.
Q: Is PVC spring hose suitable for chemical transfer?
A: Yes — TOYOGOMA PVC Spring Hose is suitable for dilute acids, alkalis, agricultural chemicals, and mild solvents compatible with PVC. Not suitable for petroleum products, concentrated acids, or aromatic solvents. Contact Flytech Engineering for chemical compatibility confirmation.
