Toyox Spring Hose (Toyospring)
The Toyox Toyospring Hose is a soft PVC spring hose reinforced with a hard steel wire helix — engineered for suction and discharge of water, chemicals, and light oils in industrial and agricultural applications. Made in Japan by TOYOX, the Toyospring combines the chemical resistance of PVC with the vacuum resistance of steel wire reinforcement for reliable performance in demanding suction applications. Temperature rated -5°C to +60°C with bore sizes from 6mm to 100mm. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.
Key Features & Specifications
• Brand: TOYOX — made in Japan
• Inner tube: Soft PVC
• Reinforcement: Hard steel wire helix — vacuum and collapse resistant
• Temperature range: -5°C to +60°C
• Working pressure: -1 Bar to +8 Bar (small sizes); -1 Bar to +2 Bar (large sizes)

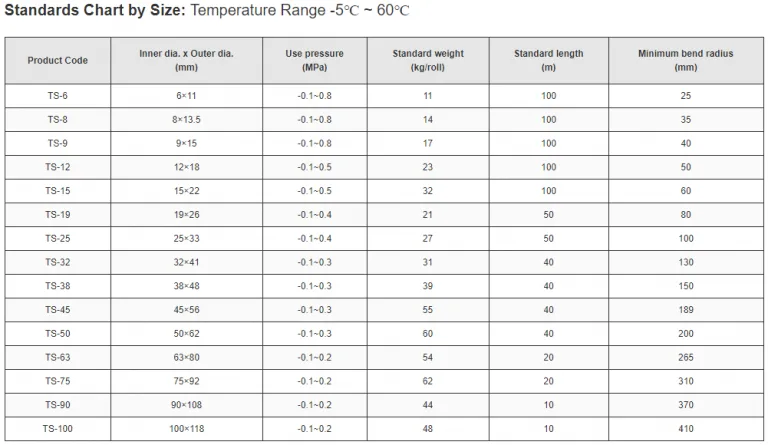

• Bore sizes: 6mm to 100mm (1/4″ to 4″)
• Full vacuum rated — anti-collapse under suction
• Transparent — visual fluid monitoring

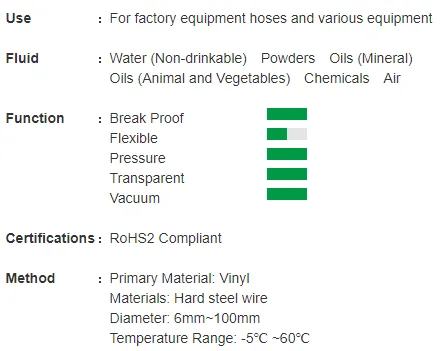

• Suitable for: water, chemicals, light oils
• TOYOX made in Japan quality
Applications
• Water suction and discharge in agriculture and construction
• Chemical suction — acids, alkalis, and solvents compatible with PVC
• Light oil and mineral oil suction
• Industrial water transfer
• Aquaculture water intake
• Chemical plant liquid transfer
• Food processing — non-food-grade liquid transfer
Available Configurations
• Available in standard coil and roll lengths
• Custom cut lengths available
• Assembled with Camlock couplings
• Assembled with BSP threaded fittings
• TOYOX dedicated couplings available
Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast nationwide delivery
• ISO 9001:2015 certified — consistent quality since 1999
• TOYOX authorised distributor in Malaysia
• Over 27 years supplying industrial hoses in Malaysia
• Technical support — hose selection and compatibility advice
• Custom assembly — cut to length with end fittings
Frequently Asked Questions
Q: What is Toyox Toyospring hose used for?
A: Toyox Toyospring is a soft PVC spring hose used for suction and discharge of water, chemicals, and light oils in industrial and agricultural applications. The hard steel wire helix provides vacuum resistance for pump suction — preventing collapse. Available in bore sizes 6mm to 100mm from Flytech Engineering.
Q: What is the working pressure of Toyospring?
A: Toyospring working pressure: small sizes (6-25mm) -1 Bar to +8 Bar; larger sizes (32-100mm) -1 Bar to +2 Bar. Full vacuum rated at -1 Bar throughout the range. Contact Flytech Engineering for specific pressure ratings by size.
Q: What chemicals is Toyospring compatible with?
A: Toyospring soft PVC is compatible with water, dilute acids, dilute alkalis, light oils, agricultural chemicals, and mild solvents compatible with PVC. Contact Flytech Engineering or TOYOX chemical resistance data for specific fluid compatibility confirmation.
Q: What bore sizes are available for Toyospring?
A: Toyospring is available in bore sizes from 6mm to 100mm (1/4″ to 4″) with ready stock at Flytech Engineering in Klang.
Q: Is Toyospring made in Japan?
A: Yes. Toyox Toyospring Hose is manufactured by TOYOX Co., Ltd., Japan — a leading Japanese industrial hose manufacturer supplying to Malaysia through Flytech Engineering Sdn Bhd in Klang, Selangor.
