Description

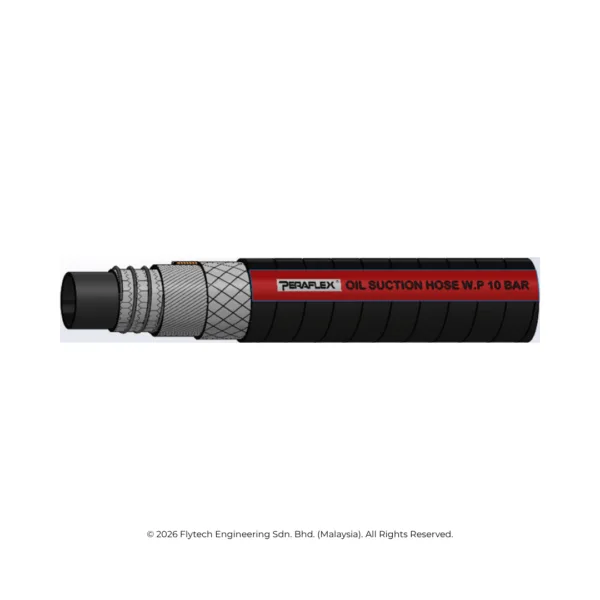

The PERAFLEX Oil Suction / Delivery Hose 10 Bar is a hardwall rubber hose engineered for the suction and delivery of oil and petroleum-based products at working pressures up to 10 Bar (150 PSI). Built with anti-static copper wire and a steel helix wire that prevents hose collapse under full vacuum, this is the reliable choice for industrial petroleum suction, fuel depots, tank truck operations, and petroleum handling across Malaysia and worldwide.

Flytech Engineering stocks PERAFLEX Oil Suction Hose 10 Bar in Klang, Selangor for fast delivery to Klang, Shah Alam, Selangor, Kuala Lumpur, Johor Bahru, Penang, Ipoh, Kerteh, Kemaman, Terengganu, Bintulu, Miri, Sarawak, Sabah, Malaysia and worldwide.

Key Features
• 10 Bar (150 PSI) working pressure — hardwall construction with helix wire prevents collapse under vacuum suction
• Anti-static copper wire — embedded in reinforcement for safe petroleum transfer in hazardous environments
• Oil resistant tube — black NBR blend compound resists petroleum-based products
• Oil, abrasion and weather resistant cover — NBR blend compound for durability in industrial environments
• Multiple layers of high tensile synthetic cord + steel helix wire — for suction stability and pressure resistance
• Wide size range — 1/2″ to 16″ bore available
• PERAFLEX branded — for easy product identification in the field

Specifications
• Working Pressure: 10 Bar (150 PSI)
• Burst Pressure: 30 Bar
• Safety Factor: 3:1
• Tube: Black NBR blend compound — oil resistant
• Cover: Black NBR blend compound — oil, abrasion and weather resistant
• Reinforcement: Multiple layers of high tensile synthetic cord + helix wire + anti-static copper wire
• Temperature Range: -20°C to +90°C

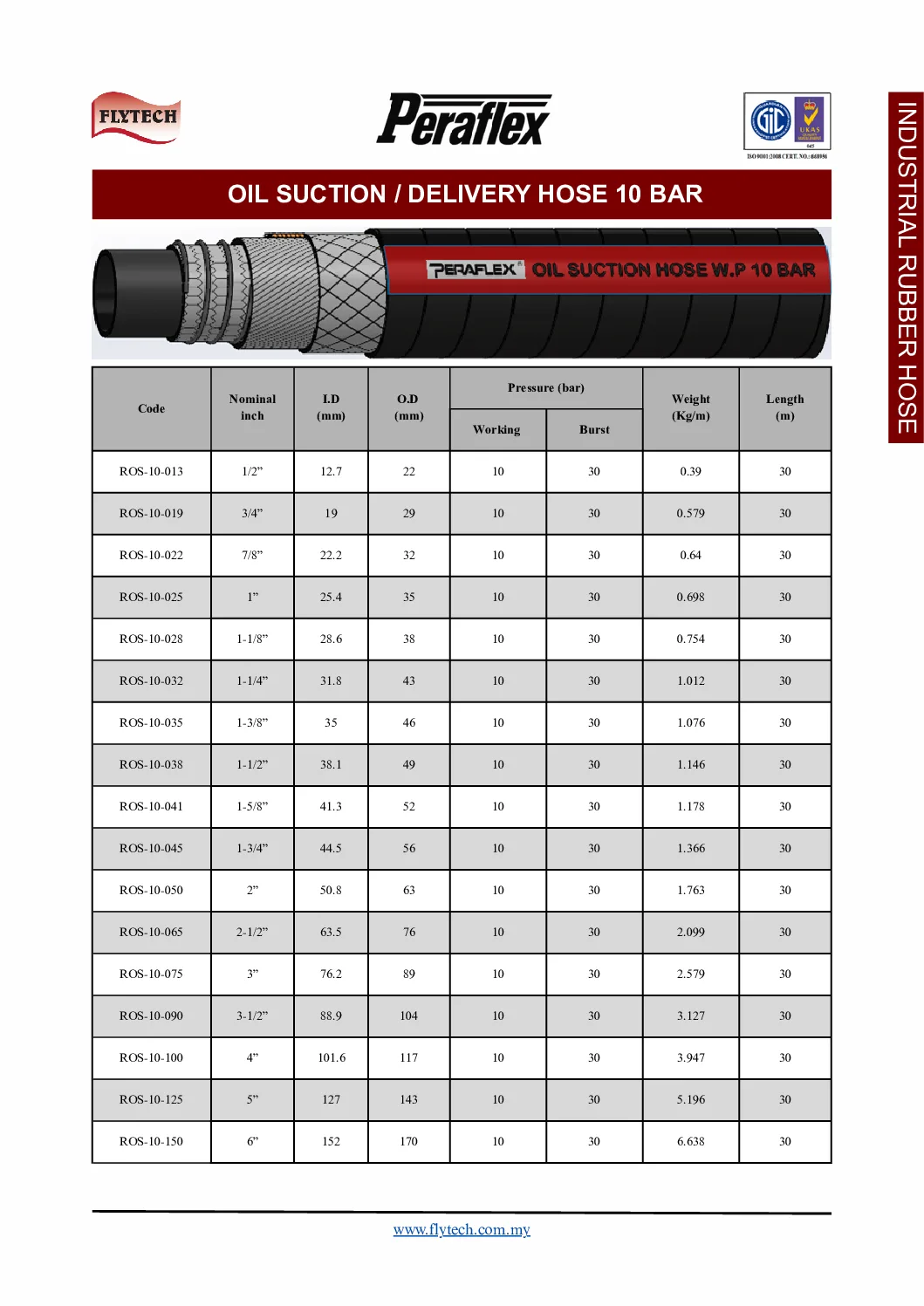

• Available Sizes: 1/2″ (12.7mm) to 16″ (406mm)
• Standard Length: 30m (1/2″–6″), 12m (8″–16″)
• Product Codes: ROS-10-013 to ROS-10-400

Applications
• Industrial oil suction — factory and plant petroleum product suction lines
• Fuel depots and storage — suction of diesel, fuel oil, and lubricants from storage tanks
• Tank truck loading — petroleum product suction at fuel terminals and depots
• Refinery service — crude oil and petroleum product suction and delivery
• General petroleum transfer — oil suction and delivery across industrial sectors in Malaysia

Available Configurations
Available in bore sizes from 1/2″ to 16″ in standard lengths. Supplied with Camlock (Type A–F), flanged (ANSI/BS/JIS), or custom end fittings. All assemblies hydrostatic pressure tested. Official test certificates on request. Ready stock in Klang, Malaysia. ISO 9001:2015 certified.
