Composite Hose GG Type

Composite Hose GG Type

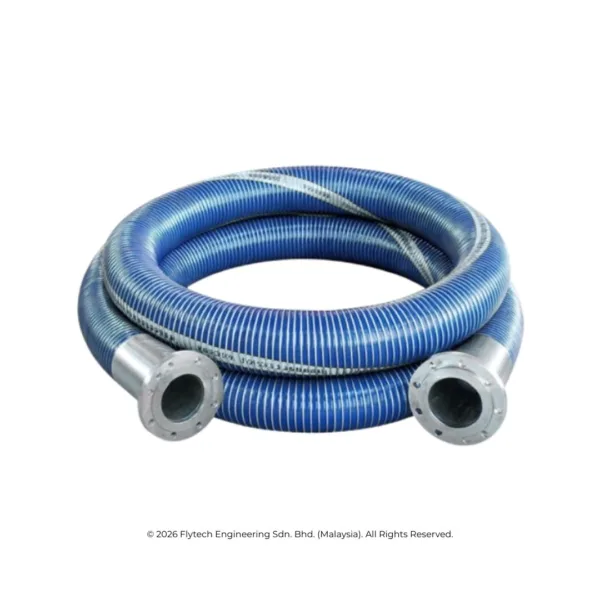

The Composite Hose GG Type is a premium flexible transfer hose engineered for the safe suction and discharge of hydrocarbons, petroleum products, and a wide range of liquid chemicals. Constructed from multiple layers of polypropylene (PP) tubes, films, and fabrics reinforced with galvanised steel inner and outer wire helixes, it delivers outstanding chemical compatibility, flexibility, and long service life in demanding industrial and marine environments. EN 13765 certified and compliant with IMO IBC Code. Available from Flytech Engineering Sdn Bhd with ready stock in Klang, Selangor.

Key Features
• Working pressure: 10 Bar (145 PSI)
• Vacuum rating: Full vacuum rated
• Temperature range: -30°C to +80°C
• Inner construction: Polypropylene (PP) tubes, films and fabrics
• Wire: Galvanised steel inner and outer wire helix
• Cover: PVC-coated polyester — weatherproof and abrasion resistant
• Sizes: 1″ to 8″ (DN25 to DN200)
• Certification: EN 13765, IMO IBC Code
• Safety factor: 5:1

Applications
• Road and rail tanker loading and unloading
• Ship-to-shore petroleum and chemical transfer
• Storage tank connections and in-plant transfer
• Port terminal bunkering operations
• Chemical processing plant transfer lines
• Palm oil and vegetable oil transfer

Available Configurations
• Loose hose — cut to required length
• Assembled with Camlock couplings (Type A, B, C, D, E, F)
• Assembled with BSP threaded end fittings
• Assembled with flanged ends (ANSI 150#, DIN, JIS)
• Hydrotest with certificate available on request

Why Choose Flytech Engineering?
• Ready stock — Klang, Selangor — fast delivery nationwide
• ISO 9001:2015 certified — consistent quality since 1999
• Over 25 years supplying composite hoses
• Custom assembly — any length, any end fitting
• Hydrotest with cert — for marine, offshore and oil & gas
• Export ready — Singapore, Indonesia, Thailand, Middle East

Frequently Asked Questions
Q: What chemicals is the GG-Type composite hose compatible with?
A: The GG-Type is suitable for Group 1 and Group 2 chemicals including hydrocarbons, petroleum products, diesel, crude oil, lubricating oils, and a wide range of solvents and liquid chemicals. For aggressive Group 3 chemicals, the STG or STS PTFE-lined types are recommended.

Q: What is the difference between GG and SS type composite hose?
A: The GG type uses galvanised steel wire — suitable for hydrocarbons and general chemicals. The SS type uses stainless steel 316 wire for aggressive chemicals and corrosive environments. Both are EN 13765 certified and available from Flytech Engineering.

Q: What sizes are available?
A: Available in sizes 1″ to 8″ (DN25 to DN200) with ready stock for standard sizes. Custom lengths and end fitting assemblies available on request.

Q: Can composite hose be supplied with hydrotest certificate?
A: Yes. All composite hose assemblies can be hydrotested and supplied with a test certificate — required for oil & gas, port terminal, marine, and offshore applications.

Q: What end fittings are available?
A: Available with Camlock couplings (Type A-F), BSP threaded, BSPT, and flanged ends (ANSI 150#, DIN, JIS). Carbon steel, stainless steel, and aluminium fittings available.
